Readers
RANGE .

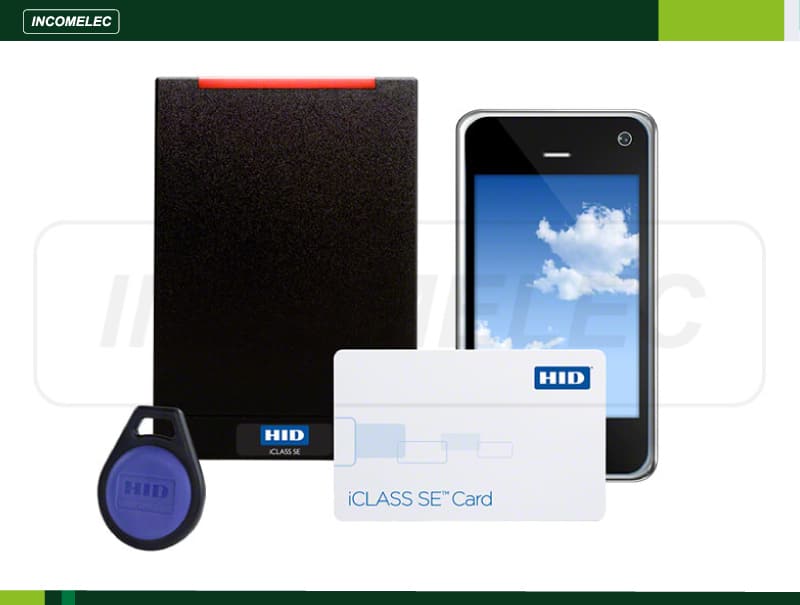

HID Range Reader - ICLASS SE
iCLASS SE is a proximity reader that sets the standard in security and versatility for access management in corporate and commercial environments.
Technology.
Equipment manufactured with state-of-the-art technology designed for high traffic.
Integration.
We guarantee integration with any collection platform.
Experience.
User-facing experience and speed.
iCLASS SE® smart cards are part of HID Global's iCLASS SE platform for adaptability, interoperability and enhanced security. The iCLASS SE 13.56 MHz contactless smart card technology offers a new class of digital credentials that can be securely provisioned and embedded in fixed cash registers and mobile devices.
- Adaptable: readers, now available with magnetic stripe, can interface with a wide variety of technologies (iCLASS® Seos™, iCLASS SE, iCLASS®standard, MIFARE® and MIFARE DESFire®EV1 with custom data models) and formats including mobile devices using Seos.
- Maximum security - provides layered security on top of the card content that adds further protection to identification data thanks to the iCLASS SE platform's Secure Identity Object® (SIO®) data model.
- On-premise programmable : enables secure, zero-downtime upgrades and extended lifecycle.
- Standardized communications (OSDP): Open Supervised Device Protocol (OSDP) for secure, bi-directional communication.
With a focus on sustainability, iCLASS SE readers include intelligent power management that reduces power consumption by up to 75%. The readers are also manufactured using recycled content, which contributes to LEED sustainable building certification.
| Formats | Controller Communication |
Controller hardware connection | Color |
|---|---|---|---|
| Contactless smart card reader iCLASSSER10 : reader ready, minimainel |
N = Wiegand C = Clock-and-data P = OSDP |
N = Flexible connection cable T = Terminal strip |
Black or gray |
| Contactless smart card reader iCLASSSER15 : reader ready, mainel |
N = Wiegand C = Clock-and-data P = OSDP |
N = Flexible connection cable T = Terminal strip |
Black or gray |
| Contactless smart card reader iCLASSSER30 : reader ready, European/Asian box |
N = Wiegand C = Clock-and-data P = OSDP |
N = Flexible connection cable T = Terminal strip |
Black or gray |
| Contactless smart card reader iCLASSSER40 Ready reader, wall socket |
N = Wiegand C = Clock-and-data P = OSDP |
N = Flexible connection cable T = Terminal strip |
Black or gray |
| Contactless smart card reader iCLASSSERK40 Ready reader, wall plug-in keypad |
N = Wiegand C = Clock-and-data P = OSDP |
N = Flexible connection cable T = Terminal strip |
Black or gray |
| Contactless smart card reader iCLASSSERM40 Ready reader, wall plug-in keypad |
N = Wiegand C = Clock-and-data P = OSDP |
N = Flexible connection cable T = Terminal strip |
Black or gray |
| Contactless smart card reader iCLASSSERMK40 Ready reader, wall plug-in keypad |
N = Wiegand C = Clock-and-data P = OSDP |
N = Flexible connection cable T = Terminal strip |
Black or gray |
| Contactless smart card reader iCLASSSEDECOR Ready reader, wall socket |
N = Wiegand C = Clock-and-data P = OSDP |

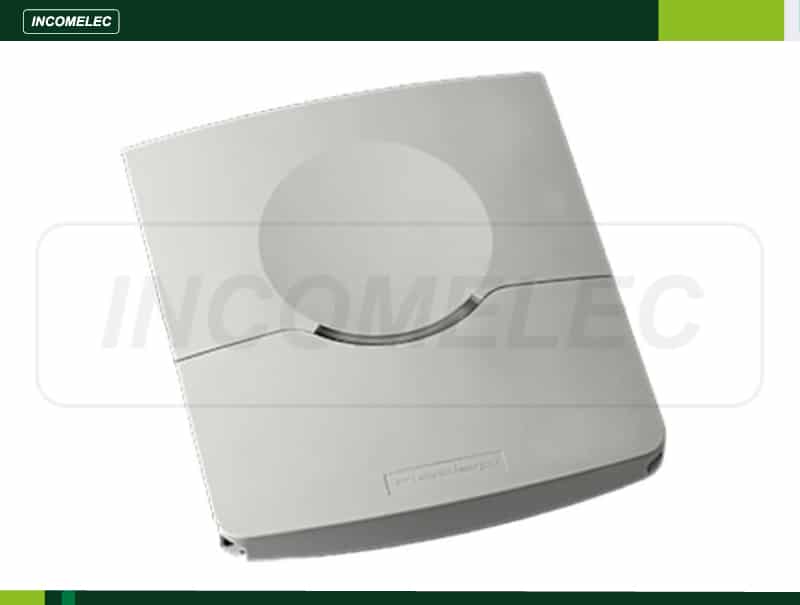

Reader LONG RANGE - UPASS
UPass is a state-of-the-art long range reader that revolutionizes the way you manage access and security in your environment. Designed to meet the needs of organizations and enterprises that require efficient access control over long distances, UPass stands out as a comprehensive solution.
Technology.
Equipment manufactured with state-of-the-art technology designed for high traffic.
Integration.
We guarantee integration with any collection platform.
Experience.
User-facing experience and speed.
The uPASS reach reader is designed for parking access in residential and commercial applications such as: gated communities, condominiums, parking garages and employee parking.
- Consistently reads up to 5 m [16 ft].
- Works with UHF passive tags
- EPC Gen2 compatible - Competitively priced
- Adjustable on-site readout
- Sleek slim design
- LED and audible read indication
- Weather-protected housing
| Operating Frequency | 865-868 MHz uPASS Reach Region 1 902-928 MHz uPASS Reach Region 2&3 |
| Dimensions | 200 x 220 x 45 mm [7.9 x 8.7 x 1.8 in] [200 x 220 x 45 mm]. |
| Weight | 0.75 kg [1.65 lbs] [0.75 kg] [1.65 lbs]. |
| Structure | Aluminum chassis with UL94 ABS surface |
| Protection | IP 65 |
| Detection range | Up to 5 meters |
| Check range | LED |
| Temperature | -30...+60°C |
| Power supply | 12...24 VDC +10%...24 VDC +10%...+10%... |
| Consumption | 1A @12VDC, 0.5@24VDC |
| Identification | The read only supports read commands |
| Input | 1 dry contact or TTL |
| Relay Output | 1 Relay Output 24 VDC 2A |
| Output | Wiegand, clock and data |
| Cable distance | Wiegand 150 m [500ft] 22AWG |
| Interface | RS232, RS422 and USB service interface |
| Communication protocols | CR/LF, DC2/DC4 and various OEM protocols |
| Encrypted air interface | ISO 18000-6 C compliant |
| Certifications | CE, FCC |
| EMC | EMC 89/336/EEC,EN301489-1 |
| Safety | EN 60950 |
| Part nr. | 9942319 uPASS Reach (Region 1) 9945466 uPASS Reach (Region 2&3) |
